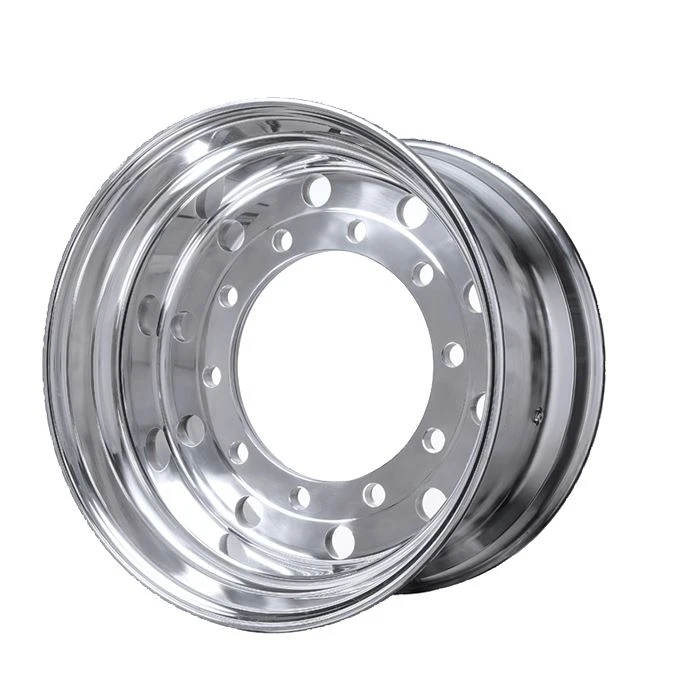

Aluminum Truck Wheels
As the leader of wheels line, the products made with our core technology are widely used on new energy vehicles, buses, coaches, heavy-duty trucks and trailers.
The making process:
Intelligent flow-forming line: introduce the most advanced flow-forming machine, implement the flow- forming technology which specially used in missile and airplane field.
Intelligent Heat Treatment Line: T6 heat treatment equipment
Intelligent CNC line:
Possessing the high-accuracy numerically controlled machine tool , machining center, advanced machines, testing equipments and established team of wheel making experts, our products’ stability and reliability are ensured thoroughly, new technology, new technics and new material fully used in the whole production line as well.
The amazing part of alloy is that it look bright and bling with no huge maintain work needed.
Advance wheel brand alloy wheel with nano-finish which can protect whole wheel appearance and no need polishing. The only thing you need to do is soap and water washing occasionally.
This is for the customers who like bling appearance and hope avoid all the maintain work and keep the wheel bright all service life. The nano-finish alloy wheels can be used on the salty and sand roads in winter as well.
When some friction, it causes some corrosion after some time, we suggest putting a cover on wheels face for protecting purpose.
When you have your tyre changed, maintaining work will be easier as well.
According to the advantages of alloy wheel, over 40% new truck have equipped with alloy wheel, it is not curious, though price is very high.
Due to the effective loading increase, resell value increase and eliminating of the renovation cost, it is achievable of a excellent profitable return.
After a few years, you have to remove the steel wheel off for renovation or repainting purpose.
|
Product: |
Forged aluminum wheel. |
|
Material: |
T6061. |
|
Manufacturer: |
Yes. |
|
OEM/ Aftermarket: |
Yes/ Yes. |
|
Warranty time: |
Three years time |
|
Making Process: |
Fully forging technique-straight press machine with 12000 Tons, Intelligent Flow Forming Technology, Intelligent T6 Heat Treatment, Diamond cutting process, Strict quality control, etc.. |
|
Surface treatment: |
Bright machined, Polished, Mirror Polished, Chromed. |
|
Packing way: |
Standard exporting pallets packing or cardboard box or assembly with tyres. |
|
Delivery time: |
Within one month. |
|
Shipping way: |
Container loading by sea. |
|
ADVANCE WHEEL BRAND-FORGED ALUMINUM WHEEL |
|||||||||||
|
Wheel Size |
Part No. |
Inset ( mm) |
Outset (mm) |
Disc Thickness (mm) |
Bolt Hole no. |
P.C.D. ( mm) |
Stud Hole Dia (mm) |
Center Hole (mm) |
Max loading (kg) |
Valve |
Tyre Size |
|
22.5X9.00 |
HZR225900002 |
152 |
175 |
23 |
10 |
335 |
26/32.5 |
281.2 |
4000 |
TR544 |
12R22.5 |
|
HZR225900002 |
152 |
175 |
23 |
10 |
335 |
26/32.5 |
281.2 |
4000 |
TR544 |
||
|
HZR225900008 |
152.5 |
176 |
23.5 |
10 |
335 |
26/32.5 |
281.2 |
4125 |
TR544D |
||
|
HZR225900009 |
152.8 |
176 |
23.2 |
10 |
335 |
26/32.5 |
281.2 |
4125 |
TR544D |
||
|
HZR225900010 |
153.3 |
176 |
22.7 |
10 |
335 |
26/32.5 |
281.2 |
4125 |
TR544D |
||
|
HZR225900014 |
79 |
104 |
25 |
10 |
335 |
26/32.5 |
281.2 |
4500 |
54MS |
||
ADVANCE WHEEL BRAND-FORGED ALUMINUM WHEEL | |||||||||||
Wheel Size | Part No. | Inset ( mm) | Outset (mm) | Disc Thickness (mm) | Bolt Hole no. | P.C.D. ( mm) | Stud Hole Dia (mm) | Center Hole (mm) | Max loading (kg) | Valve | Tyre Size |
22.5X9.00 | HZR225900002 | 152 | 175 | 23 | 10 | 335 | 26/32.5 | 281.2 | 4000 | TR544 | 12R22.5 |
HZR225900002 | 152 | 175 | 23 | 10 | 335 | 26/32.5 | 281.2 | 4000 | TR544 | ||
HZR225900008 | 152.5 | 176 | 23.5 | 10 | 335 | 26/32.5 | 281.2 | 4125 | TR544D | ||
HZR225900009 | 152.8 | 176 | 23.2 | 10 | 335 | 26/32.5 | 281.2 | 4125 | TR544D | ||
HZR225900010 | 153.3 | 176 | 22.7 | 10 | 335 | 26/32.5 | 281.2 | 4125 | TR544D | ||
HZR225900014 | 79 | 104 | 25 | 10 | 335 | 26/32.5 | 281.2 | 4500 | 54MS | ||
