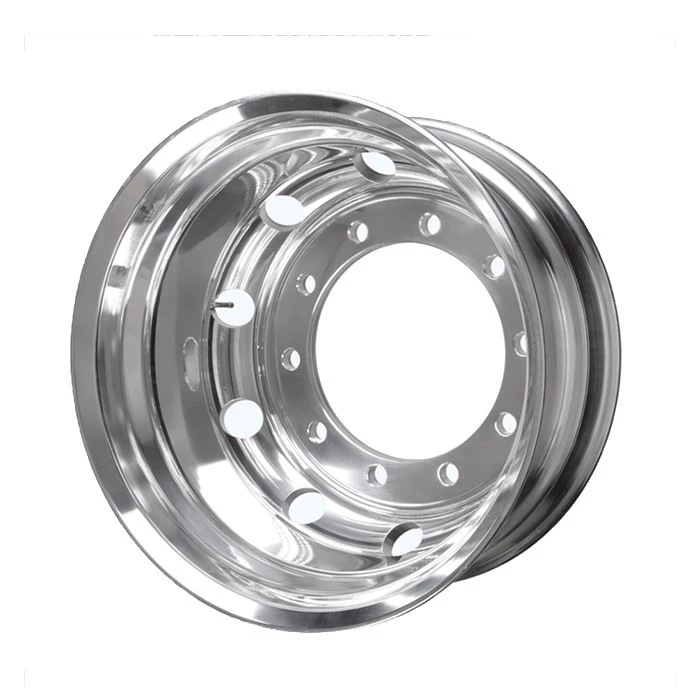

22.5 Polished Aluminum Wheels
Precautions when assemble and disassemble the wheel:
1. Tighten the nuts with recommended torque when installing. Over tightening with cause bolt hole deformation and bolt damage, as well as core shift installation, lead to the shaking happening. Insufficient tightening may cause loosening of the nut. Insufficient tightening may cause the nut loosening and dropping.
2. For the new cars or cars with changed wheels, the recommended torsion is required to tighten the nuts again after driving about 100 kilometers. In addition, regular checks are needed for loosening.
Actually alloy wheel is not new , it has been used in haul truck line for more than 50 years.
However, recently, it became more and more popular, even the price is as much as three or four times of steel wheel.
The most advantage of alloy wheel is that it weighs more less than steel wheel: reduce around 13.6 kg each wheel.
The original motion is reduce weight, using alloy wheel instead of steel wheel can reduce truck weight by 136.05kg around, truck or trailer combination may up to 226.75 kg.
|
Product: |
Forged aluminum wheel. |
|
Material: |
T6061. |
|
Manufacturer: |
Yes. |
|
OEM/ Aftermarket: |
Yes/ Yes. |
|
Warranty time: |
Three years time |
|
Making Process: |
Fully forging technique-straight press machine with 12000 Tons, Intelligent Flow Forming Technology, Intelligent T6 Heat Treatment, Diamond cutting process, Strict quality control, etc.. |
|
Surface treatment: |
Bright machined, Polished, Mirror Polished, Chromed. |
|
Packing way: |
Standard exporting pallets packing or cardboard box or assembly with tyres. |
|
Delivery time: |
Within one month. |
|
Shipping way: |
Container loading by sea. |
|
ADVANCE WHEEL BRAND-FORGED ALUMINUM WHEEL |
|||||||||||
|
Wheel Size |
Part No. |
Inset ( mm) |
Outset (mm) |
Disc Thickness (mm) |
Bolt Hole no. |
P.C.D. ( mm) |
Stud Hole Dia (mm) |
Center Hole (mm) |
Max loading (kg) |
Valve |
Tyre Size |
|
22.5X8.25 |
HZR225825001 |
143.5 |
167.5 |
24 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
11R22.5 |
|
HZR225825008 |
144.8 |
168 |
23.2 |
8 |
275 |
24/26/32.5 |
221.1 |
3650 |
TR544D |
||
|
HZR225825009 |
142.5 |
165.5 |
23 |
8 |
285 |
26/32.5 |
221.1 |
3650 |
TR544D |
||
|
HZR225825010 |
143.5 |
167.5 |
24 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544 |
||
|
HZR225825014 |
144 |
167 |
23 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
70MS-07N |
||
|
HZR225825015 |
144 |
167.5 |
23.5 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
70MS-07N |
||
ADVANCE WHEEL BRAND-FORGED ALUMINUM WHEEL | |||||||||||
Wheel Size | Part No. | Inset ( mm) | Outset (mm) | Disc Thickness (mm) | Bolt Hole no. | P.C.D. ( mm) | Stud Hole Dia (mm) | Center Hole (mm) | Max loading (kg) | Valve | Tyre Size |
22.5X8.25 | HZR225825001 | 143.5 | 167.5 | 24 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | 11R22.5 |
HZR225825008 | 144.8 | 168 | 23.2 | 8 | 275 | 24/26/32.5 | 221.1 | 3650 | TR544D | ||
HZR225825009 | 142.5 | 165.5 | 23 | 8 | 285 | 26/32.5 | 221.1 | 3650 | TR544D | ||
HZR225825010 | 143.5 | 167.5 | 24 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544 | ||
HZR225825014 | 144 | 167 | 23 | 10 | 335 | 26/32.5 | 281.2 | 3650 | 70MS-07N | ||
HZR225825015 | 144 | 167.5 | 23.5 | 10 | 335 | 26/32.5 | 281.2 | 3650 | 70MS-07N | ||
