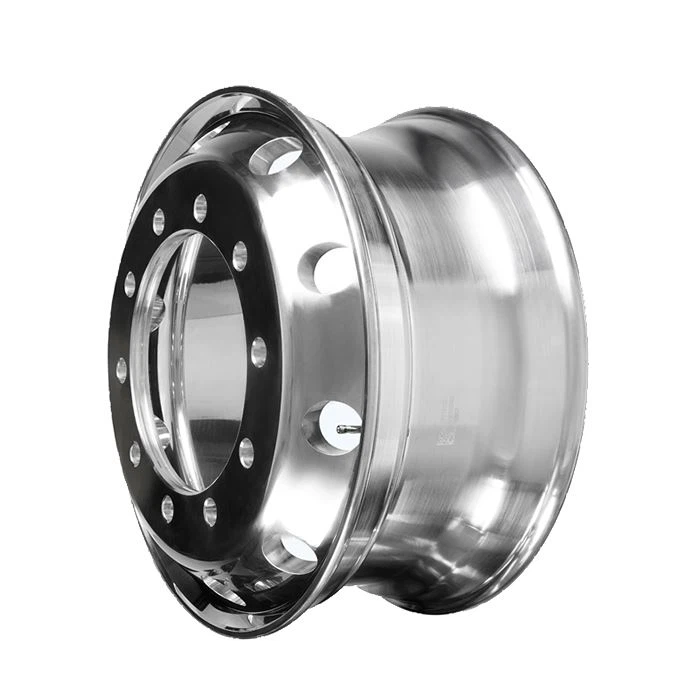

22.5 X 8.25 Aluminum Wheels
The forged aluminum wheel weight is most half as much as the steel wheel with same wheel size. For instance of 8.25x22.5 wheel size, forged aluminum wheel weigh 24kg, but steel wheel weigh 43kg.
Send Inquiry
Add To Inquiry
Product Details of22.5 X 8.25 Aluminum Wheels
The advantages of forged aluminum wheel:
1. Forged aluminum wheel weigh light itself
The forged aluminum wheel weight is most half as much as the steel wheel with same wheel size. For instance of 8.25x22.5 wheel size, forged aluminum wheel weigh 24kg, but steel wheel weigh 43kg.
2. Higher strength.
The feature of anti-deformation, forged aluminum wheel's is 5 times as much as steel wheel's.
Japan VIA testing:
Stimulating a truck struck to the road side, it equals to the force that 910kg weight crashing on tyre and wheel from high. The test result from the testing machine certificated by Japan VIA certification: forged aluminum wheel was only little damaged, however, steel wheel was totally destroyed.
3. Better heat dissipation, reducing tyre's friction loss and bursting risk.
a. The speed of heat dissipation of forged aluminum wheel is three times as much as steel wheel.
b. Effectively lower the tire's temperature, reduce the tyre's friction loss and increase the service life as well.
c. Forged aluminum wheel is more safe and more reliable performance, cuting down the risk of tyre bursting.
4. Better roundness and dynamic balance performance.
5. Processed in the way of all-in-one , stronger inner structure and more beautiful appearance.
Lower operating cost, lighter weight, stronger loads, safer performance.
Investment income analysis of forged aluminum wheels equipped with trucks or trailers.
1. Counting based on that forged aluminum wheel weigh 24kg, steel wheel weigh 48kg.
2. 6x4 tractor heading engine, plus 3 axles rear trailer, total 22 wheels.
3. Assuming the year travel distance is 250 000km with the rate of full loading trip/empty loading trip is 7/3.
4. Freight cost is 0.35yuan/ton/km.
5. 22 tyres, the service life of each tyre is 160 000km, price is 2000yuan per unit ( date from May, 2016), the average fuel consumption per hundred km: 36 L, diesel price is 5.4 yuan/ L ( date from May, 2016).
After using aluminum wheel, counting the increased income based on fuel saved rate 2.3% , tyre saved rate 26%:
|
Calculation of the operation cost conduced |
Extra income increased |
|
|
Fuel saved per year |
300 000/100x30x5.7x0.023 |
$1843.0 |
|
Tire saved per year |
2000x6x300 000/300 000x0.26 |
$487.0 |
|
Total |
$2330.0 |
|
Product: |
Forged aluminum wheel. |
|
Material: |
T6061. |
|
Manufacturer: |
Yes. |
|
OEM/ Aftermarket: |
Yes/ Yes. |
|
Warranty time: |
Three years time |
|
Making Process: |
Fully forging technique-straight press machine with 12000 Tons, Intelligent Flow Forming Technology, Intelligent T6 Heat Treatment, Diamond cutting process, Strict quality control, etc.. |
|
Surface treatment: |
Bright machined, Polished, Mirror Polished, Chromed. |
|
Packing way: |
Standard exporting pallets packing or cardboard box or assembly with tyres. |
|
Delivery time: |
Within one month. |
|
Shipping way: |
Container loading by sea. |
|
ADVANCE WHEEL BRAND-FORGED ALUMINUM WHEEL |
|||||||||||
|
Wheel Size |
Part No. |
Inset ( mm) |
Outset (mm) |
Disc Thickness (mm) |
Bolt Hole no. |
P.C.D. ( mm) |
Stud Hole Dia (mm) |
Center Hole (mm) |
Max loading (kg) |
Valve |
Tyre Size |
|
22.5X8.25 |
HZR225825001 |
143.5 |
167.5 |
24 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
11R22.5 |
|
HZR225825002 |
146 |
169 |
23 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
||
|
HZR225825003 |
146 |
169 |
23 |
10 |
285.75 |
26/32.5 |
220.1 |
3365 |
TR544D |
||
|
HZR225825004 |
144.5 |
167 |
22.5 |
10 |
285.75 |
26/32.5 |
220.1 |
3365 |
TR544D |
||
|
HZR225825005 |
144.8 |
168 |
23.2 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
||
|
HZR225825006 |
145.5 |
167 |
21.5 |
10 |
285.75 |
26 |
220.1 |
3365 |
TR544D |
||
|
HZR225825007 |
146.5 |
167 |
20.5 |
10 |
285.75 |
26 |
220.1 |
3365 |
TR544D |
||
|
HZR225825008 |
144.8 |
168 |
23.2 |
8 |
275 |
24/26/32.5 |
221.1 |
3650 |
TR544D |
||
|
HZR225825009 |
142.5 |
165.5 |
23 |
8 |
285 |
26/32.5 |
221.1 |
3650 |
TR544D |
||
|
HZR225825010 |
143.5 |
167.5 |
24 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544 |
||
|
HZR225825011 |
143.8 |
167 |
23.2 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544D |
||
|
HZR225825012 |
144.5 |
167 |
22.5 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544D |
||
|
HZR225825013 |
144 |
166 |
22 |
10 |
335 |
26/32.5 |
281.2 |
3550 |
70MS-07N |
||
|
HZR225825014 |
144 |
167 |
23 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
70MS-07N |
||
|
HZR225825015 |
144 |
167.5 |
23.5 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
70MS-07N |
||
ADVANCE WHEEL BRAND-FORGED ALUMINUM WHEEL | |||||||||||
Wheel Size | Part No. | Inset ( mm) | Outset (mm) | Disc Thickness (mm) | Bolt Hole no. | P.C.D. ( mm) | Stud Hole Dia (mm) | Center Hole (mm) | Max loading (kg) | Valve | Tyre Size |
22.5X8.25 | HZR225825001 | 143.5 | 167.5 | 24 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | 11R22.5 |
HZR225825002 | 146 | 169 | 23 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | ||
HZR225825003 | 146 | 169 | 23 | 10 | 285.75 | 26/32.5 | 220.1 | 3365 | TR544D | ||
HZR225825004 | 144.5 | 167 | 22.5 | 10 | 285.75 | 26/32.5 | 220.1 | 3365 | TR544D | ||
HZR225825005 | 144.8 | 168 | 23.2 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | ||
HZR225825006 | 145.5 | 167 | 21.5 | 10 | 285.75 | 26 | 220.1 | 3365 | TR544D | ||
HZR225825007 | 146.5 | 167 | 20.5 | 10 | 285.75 | 26 | 220.1 | 3365 | TR544D | ||
HZR225825008 | 144.8 | 168 | 23.2 | 8 | 275 | 24/26/32.5 | 221.1 | 3650 | TR544D | ||
HZR225825009 | 142.5 | 165.5 | 23 | 8 | 285 | 26/32.5 | 221.1 | 3650 | TR544D | ||
HZR225825010 | 143.5 | 167.5 | 24 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544 | ||
HZR225825011 | 143.8 | 167 | 23.2 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544D | ||
HZR225825012 | 144.5 | 167 | 22.5 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544D | ||
HZR225825013 | 144 | 166 | 22 | 10 | 335 | 26/32.5 | 281.2 | 3550 | 70MS-07N | ||
HZR225825014 | 144 | 167 | 23 | 10 | 335 | 26/32.5 | 281.2 | 3650 | 70MS-07N | ||
HZR225825015 | 144 | 167.5 | 23.5 | 10 | 335 | 26/32.5 | 281.2 | 3650 | 70MS-07N | ||
