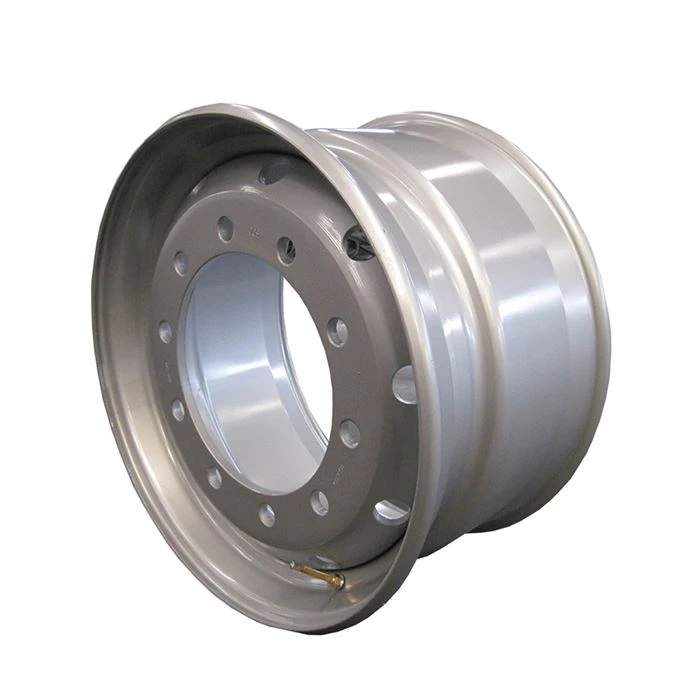

Heavy Duty Steel Wheels for Trailers
2. Keeping the classic structure design of traditional tubeless wheel, increasing the wheel's strength and reducing the wheel's weight, better fuel saving, better energy conservation, better comfort.
Send Inquiry
Add To Inquiry
Product Details ofHeavy Duty Steel Wheels for Trailers
Qingyang series wheels –light weight steel wheel
Advantages of Qingyang series wheels:
1. Using high strength ''shaungxianggang'' material, efficiently improve tubeless steel wheel strength and reduce the weight up to 9 kg each unit.
2. Keeping the classic structure design of traditional tubeless wheel, increasing the wheel's strength and reducing the wheel's weight, better fuel saving, better energy conservation, better comfort.
Note: Shuangxianggang is a sort of steel which consist of tiesutixiang and mashitixiang, which is made by rolling low carbon and low alloy steel after critical treatment or control.
3. Comparing with aluminum wheel, value for money is higher.
|
ADVANCE WHEEL BRAND-TUBELESS STEEL WHEEL |
|||||||||
|
Wheel Size |
Part No. |
Stud Hole no. |
Stud Hole Dia (mm) |
Stud Hole Type |
P.C.D. ( mm) |
Center Hole (mm) |
Offset (mm) |
Disc Thickness (mm) |
Tyre Size |
|
22.5X11.75 |
HZR2251175001 |
10 |
Φ26/Φ27 |
1X45º/SR18 |
Φ335 |
Φ281 |
0/120 |
14/16 |
15R22.5 425/65R22.5 |
|
HZR2251175002 |
8 |
Φ26/Φ27 |
1X45º/SR18 |
Φ275 |
Φ221 |
0/120 |
14/16 |
||
|
HZR2251175003 |
8 |
Φ21.5 |
SR16 |
Φ275 |
Φ221 |
0/120 |
14/16 |
||
|
HZR2251175004 |
6 |
Φ21.5 |
1X45º/SR16 |
Φ205 |
Φ161 |
0 |
14/16 |
||
|
HZR2251175005 |
10 |
Φ32.5 |
SR22 |
Φ285.75 |
Φ222 |
0/120 |
14/16 |
||
|
HZR2251175006 |
10 |
Φ26 |
1X45º |
Φ285.75 |
Φ220 |
0/120 |
14/16 |
||
|
HZR2251175007 |
8 |
Φ32.5 |
SR22 |
Φ285 |
Φ221 |
0/120 |
14/16 |
||
|
22.5X13.00 |
HZR2251300001 |
10 |
Φ26/Φ27 |
1X45º/SR18 |
Φ335 |
Φ281 |
0/120/80 |
14/16 |
18R22.5 425/65R22.5 |
|
HZR2251300002 |
8 |
Φ32.5 |
SR22 |
Φ285 |
Φ221 |
115/0/120 |
14/16 |
||
|
HZR2251300003 |
8 |
Φ21.5 |
1X45º/SR16 |
Φ275 |
Φ221 |
0/120 |
14/16 |
||
|
HZR2251300004 |
8 |
Φ26/Φ27 |
1X45º/SR18 |
Φ275 |
Φ221 |
0/120 |
14/16 |
||
|
HZR2251300005 |
6 |
Φ21.5 |
1X45º/SR16 |
Φ205 |
Φ161 |
0/120 |
14/16 |
||
ADVANCE WHEEL BRAND-TUBELESS STEEL WHEEL | |||||||||
Wheel Size | Part No. | Stud Hole no. | Stud Hole Dia (mm) | Stud Hole Type | P.C.D. ( mm) | Center Hole (mm) | Offset (mm) | Disc Thickness (mm) | Tyre Size |
22.5X11.75 | HZR2251175001 | 10 | Φ26/Φ27 | 1X45º/SR18 | Φ335 | Φ281 | 0/120 | 14/16 | 15R22.5 425/65R22.5 |
HZR2251175002 | 8 | Φ26/Φ27 | 1X45º/SR18 | Φ275 | Φ221 | 0/120 | 14/16 | ||
HZR2251175003 | 8 | Φ21.5 | SR16 | Φ275 | Φ221 | 0/120 | 14/16 | ||
HZR2251175004 | 6 | Φ21.5 | 1X45º/SR16 | Φ205 | Φ161 | 0 | 14/16 | ||
HZR2251175005 | 10 | Φ32.5 | SR22 | Φ285.75 | Φ222 | 0/120 | 14/16 | ||
HZR2251175006 | 10 | Φ26 | 1X45º | Φ285.75 | Φ220 | 0/120 | 14/16 | ||
HZR2251175007 | 8 | Φ32.5 | SR22 | Φ285 | Φ221 | 0/120 | 14/16 | ||
22.5X13.00 | HZR2251300001 | 10 | Φ26/Φ27 | 1X45º/SR18 | Φ335 | Φ281 | 0/120/80 | 14/16 | 18R22.5 425/65R22.5 |
HZR2251300002 | 8 | Φ32.5 | SR22 | Φ285 | Φ221 | 115/0/120 | 14/16 | ||
HZR2251300003 | 8 | Φ21.5 | 1X45º/SR16 | Φ275 | Φ221 | 0/120 | 14/16 | ||
HZR2251300004 | 8 | Φ26/Φ27 | 1X45º/SR18 | Φ275 | Φ221 | 0/120 | 14/16 | ||
HZR2251300005 | 6 | Φ21.5 | 1X45º/SR16 | Φ205 | Φ161 | 0/120 | 14/16 | ||
