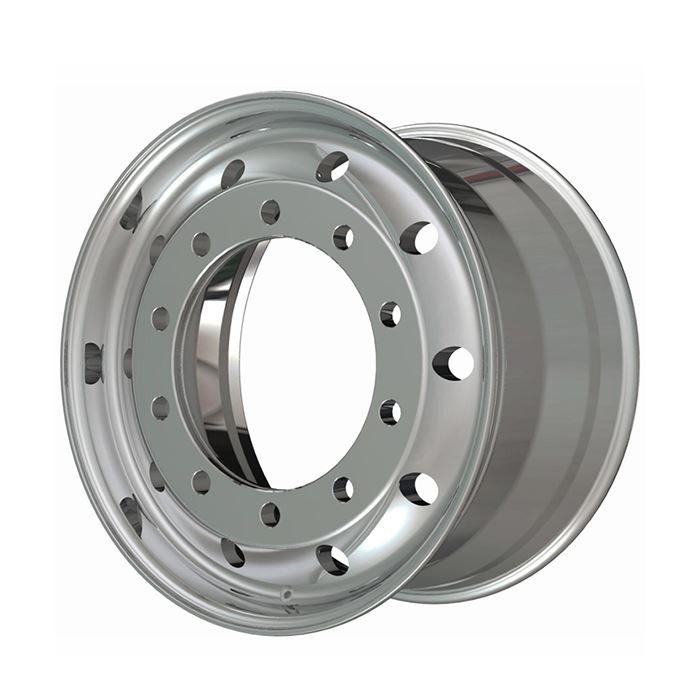

22.5 X 8.25 Steel Wheels
Qingdao Haizhirui Import & Export Co., Ltd. is one of the large professional manufacturer of automobile wheel rim in China. Products range covers tubeless steel wheel, forged aluminum wheel and tube steel wheel as well.
LunBa series wheels- Wider flange designed wheel

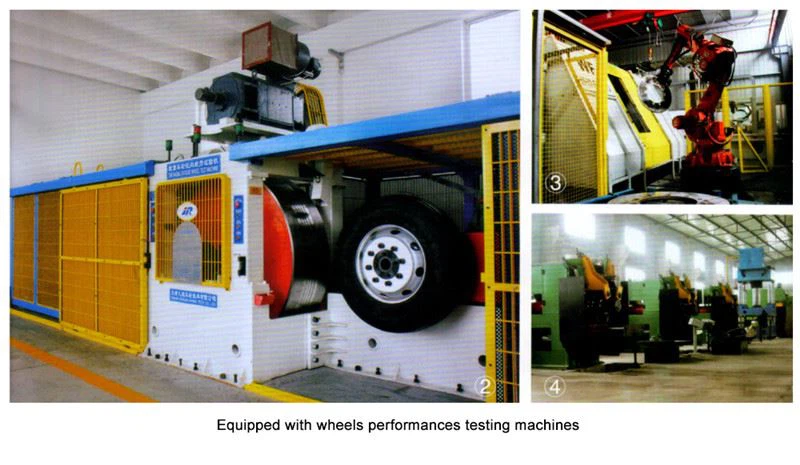

Based of 420 MC material and wider flange designed, the Lunba series wheels has passed the test of Yantai country wheels association officially.
The advantage of LunBa series wheels:
Boosting the Impact test by 35%;
Increasing the Twisting test by 53%;
Improving the Fatigue test by 65%;
Raising the Radial loading capacity by 38%.
Truly protecting tyres through the performance comparison.
Steel wheel: What you should know
The two advantages of steel wheel is more economy, more durable comparing with alloy wheel. For alloy wheel, it could not damage steel wheel, this make steel wheel to be the ideal choice particularly on the condition of bad roads. The more importance is steel wheel will not rusty as long as the painting coat covering the wheel body. Though steel wheel truly can pit or bend, these irregular defects can be solved making the wheel back to the suitable shape through battering tools.
However, it should be noted that, steel wheel's overweight can be used in winter. In winter, it can steady the vehicles on snowy or icy roads. Hence, many drivers generally change alloy wheels to steel wheel in winter season. For the vehicles which often used on off road and heave duty working, steel wheel might be the ideal choose all year time
By the time of 1000 years ago, celts began to fit steel wheel to their double wheels carriage. Due to the sturdy and durable feature, this kind of had been used until 1802 year. You still can see this invention on bicycle right now.
With the steel wheel coming out, another great invention was emerged that is pneumatic tyre. In 1887, it is the time to say goodbye to bump and discomfort as English people used decentralized steel bars as support, combining the pneumatic tyre usage as well.
|
Product |
Tubeless steel wheel |
|
Material |
380CL |
|
Manufacturer |
Yes |
|
OEM/ After market |
Yes/ Yes |
|
Warranty time |
Half year time |
|
Making Process |

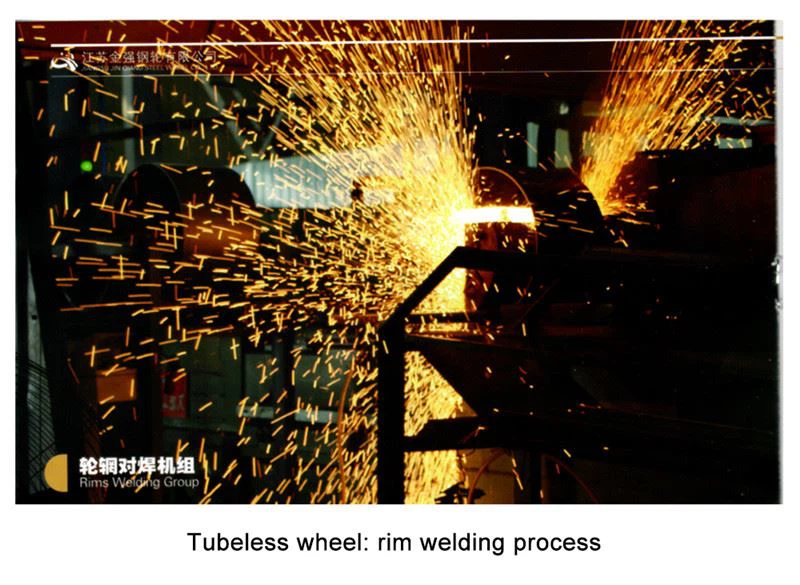

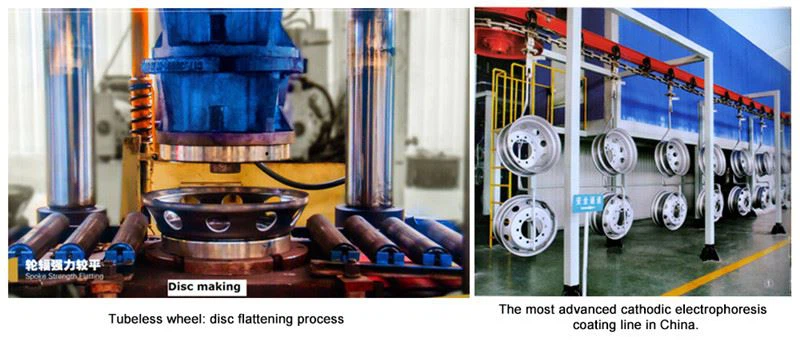

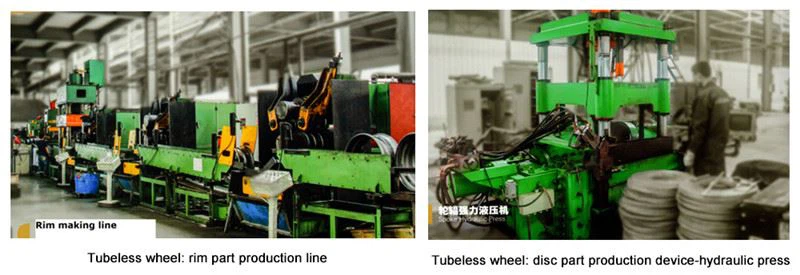

Rim making, disc making, assemble welding rim and disc together, cathodic electrophoresis coating, packing, storage. |
|
Surface treatment |
Silver painting/ white painting/ white powder coating |
|
Packing way |

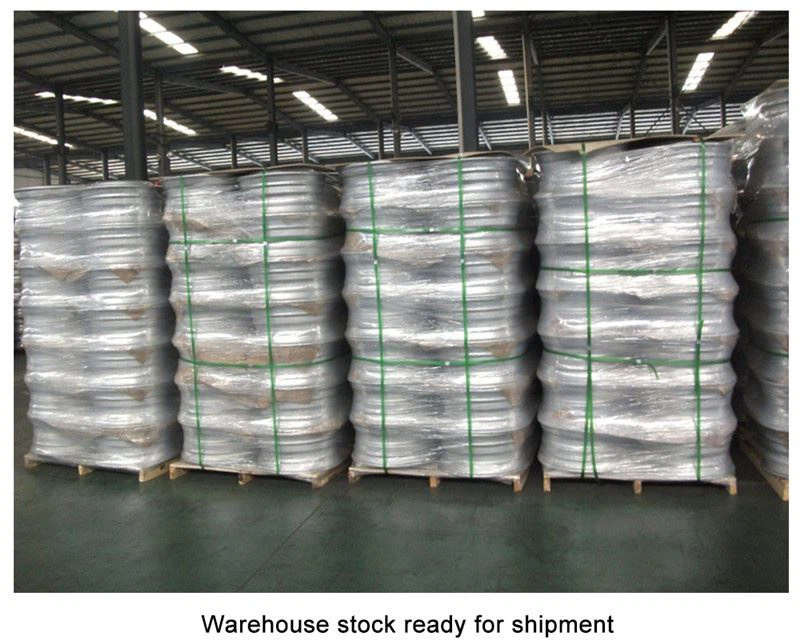

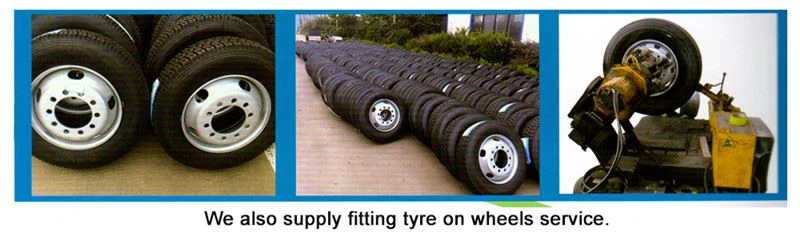

Standard exporting pallets packing or assembly with tyres |
|
Delivery time |
Within one month |
|
Shipping way |

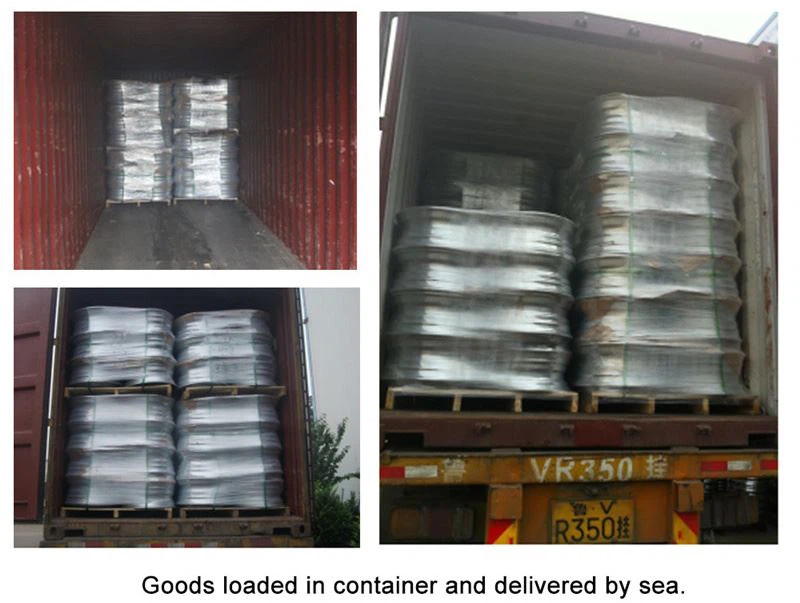

Container loading by sea. |
|
ADVANCE WHEEL BRAND-TUBELESS STEEL WHEEL |
|||||||||
|
Wheel Size |
Part No. |
Stud Hole no. |
Stud Hole Dia (mm) |
Stud Hole Type |
P.C.D. (mm) |
Center Hole (mm) |
Offset (mm) |
Disc Thickness (mm) |
Tyre Size |
|
22.5X8.25 |
HZR225825001 |
10 |
Φ26/Φ27 |
1X45º/SR18 |
Φ275 |
Φ214 |
152 |
14/16 |
11R22.5 12R22.5 225/70R22.5 275/70R22.5 295/75R22.5 295/80R22.5 |
|
HZR225825002 |
10 |
Φ26/Φ27 |
1X45º |
Φ335 |
Φ281 |
162/165/155 |
14/16 |
||
|
HZR225825003 |
10 |
Φ32.5 |
SR22 |
Φ275 |
Φ221 |
158/160/165 |
14/16 |
||
|
HZR225825004 |
8 |
Φ32.5 |
SR22 |
Φ222.25 |
Φ164 |
110/190 |
14/16 |
||
|
HZR225825005 |
8 |
Φ32.5 |
SR22 |
Φ275 |
Φ221 |
0 |
14/16 |
||
|
HZR225825006 |
8 |
Φ26/Φ27 |
1X45º/SR18 |
Φ285.75 |
Φ222 |
165/152 |
14/16 |
||
|
HZR225825007 |
10 |
Φ26 |
1X45º |
Φ285.75 |
Φ220 |
165/152 |
14/16 |
||
|
HZR225825008 |
10 |
Φ26 |
1X45º |
Φ285 |
Φ221 |
152 |
14/16 |
||
ADVANCE WHEEL BRAND-TUBELESS STEEL WHEEL | |||||||||
Wheel Size | Part No. | Stud Hole no. | Stud Hole Dia (mm) | Stud Hole Type | P.C.D. (mm) | Center Hole (mm) | Offset (mm) | Disc Thickness (mm) | Tyre Size |
22.5X8.25 | HZR225825001 | 10 | Φ26/Φ27 | 1X45º/SR18 | Φ275 | Φ214 | 152 | 14/16 | 11R22.5 12R22.5 225/70R22.5 275/70R22.5 295/75R22.5 295/80R22.5 |
HZR225825002 | 10 | Φ26/Φ27 | 1X45º | Φ335 | Φ281 | 162/165/155 | 14/16 | ||
HZR225825003 | 10 | Φ32.5 | SR22 | Φ275 | Φ221 | 158/160/165 | 14/16 | ||
HZR225825004 | 8 | Φ32.5 | SR22 | Φ222.25 | Φ164 | 110/190 | 14/16 | ||
HZR225825005 | 8 | Φ32.5 | SR22 | Φ275 | Φ221 | 0 | 14/16 | ||
HZR225825006 | 8 | Φ26/Φ27 | 1X45º/SR18 | Φ285.75 | Φ222 | 165/152 | 14/16 | ||
HZR225825007 | 10 | Φ26 | 1X45º | Φ285.75 | Φ220 | 165/152 | 14/16 | ||
HZR225825008 | 10 | Φ26 | 1X45º | Φ285 | Φ221 | 152 | 14/16 | ||
