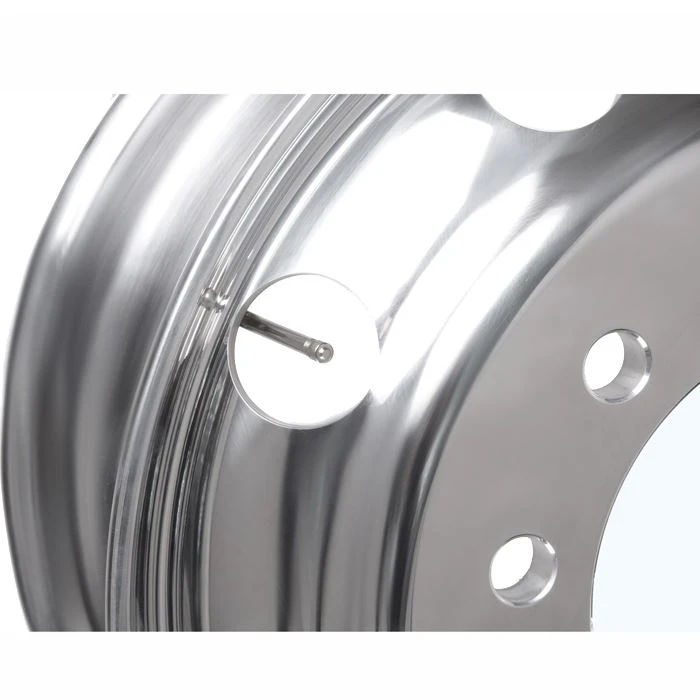

22.5 Inch Aluminum Trailer Wheels
With factory introducing advanced equipment from all over the world, such as 6000 tons, 12000 tons, 800 tons, three-step straight press forging machine, flow forming machine, T6 heat treating system, Robotic operating Platform and Automated Control Line from USA, achieving CNC automation forging process, our mainly products-Light weight, strong loading capacity fully forging aluminum wheels and tubeless steel wheels are designed aiming at high-end overseas and OEM markets.
The advantages of forged aluminum wheels:
Light
Superlight-weight
Reducing the whole vehicle weight and increasing fuel efficiency
Bling
The diamond cutting technology introduced
More beautiful, more anti-corrosion, easy to clean.
Strong
The strength of forged aluminum wheel is five times as much as steel wheel.
|
Product: |
Forged aluminum wheel. |
|
Material: |
T6061. |
|
Manufacturer: |
Yes. |
|
OEM/ Aftermarket: |
Yes/ Yes. |
|
Warranty time: |
Three years. |
|
Making Process: |
Fully forging technique-straight press machine with 12000 Tons, Intelligent Flow Forming Technology, Intelligent T6 Heat Treatment, Diamond cutting process, Strict quality control, etc.. |
|
Surface treatment: |
Bright machined, Polished, Mirror Polished, Chromed. |
|
Packing way: |
Standard exporting pallets packing or cardboard box or assembly with tyres. |
|
Delivery time: |
Within one month. |
|
Shipping way: |
Container loading by sea. |
|
Wheel Size |
Part No. |
Inset ( mm) |
Outset (mm) |
Disc Thickness (mm) |
Bolt Hole no. |
P.C.D. ( mm) |
Stud Hole Dia (mm) |
Center Hole (mm) |
Max loading (kg) |
Valve |
Tyre Size |
|
22.5X8.25 |
HZR225825001 |
143.5 |
167.5 |
24 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
11R22.5 |
|
HZR225825002 |
146 |
169 |
23 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
||
|
HZR225825003 |
146 |
169 |
23 |
10 |
285.75 |
26/32.5 |
220.1 |
3365 |
TR544D |
||
|
HZR225825004 |
144.5 |
167 |
22.5 |
10 |
285.75 |
26/32.5 |
220.1 |
3365 |
TR544D |
||
|
HZR225825005 |
144.8 |
168 |
23.2 |
10 |
285.75 |
26/32.5 |
220.1 |
3650 |
TR544D |
||
|
HZR225825006 |
145.5 |
167 |
21.5 |
10 |
285.75 |
26 |
220.1 |
3365 |
TR544D |
||
|
HZR225825007 |
146.5 |
167 |
20.5 |
10 |
285.75 |
26 |
220.1 |
3365 |
TR544D |
||
|
HZR225825008 |
144.8 |
168 |
23.2 |
8 |
275 |
24/26/32.5 |
221.1 |
3650 |
TR544D |
||
|
HZR225825009 |
142.5 |
165.5 |
23 |
8 |
285 |
26/32.5 |
221.1 |
3650 |
TR544D |
||
|
HZR225825010 |
143.5 |
167.5 |
24 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544 |
||
|
HZR225825011 |
143.8 |
167 |
23.2 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544D |
||
|
HZR225825012 |
144.5 |
167 |
22.5 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
TR544D |
||
|
HZR225825013 |
144 |
166 |
22 |
10 |
335 |
26/32.5 |
281.2 |
3550 |
70MS-07N |
||
|
HZR225825014 |
144 |
167 |
23 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
70MS-07N |
||
|
HZR225825015 |
144 |
167.5 |
23.5 |
10 |
335 |
26/32.5 |
281.2 |
3650 |
70MS-07N |
Wheel Size | Part No. | Inset ( mm) | Outset (mm) | Disc Thickness (mm) | Bolt Hole no. | P.C.D. ( mm) | Stud Hole Dia (mm) | Center Hole (mm) | Max loading (kg) | Valve | Tyre Size |
22.5X8.25 | HZR225825001 | 143.5 | 167.5 | 24 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | 11R22.5 |
HZR225825002 | 146 | 169 | 23 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | ||
HZR225825003 | 146 | 169 | 23 | 10 | 285.75 | 26/32.5 | 220.1 | 3365 | TR544D | ||
HZR225825004 | 144.5 | 167 | 22.5 | 10 | 285.75 | 26/32.5 | 220.1 | 3365 | TR544D | ||
HZR225825005 | 144.8 | 168 | 23.2 | 10 | 285.75 | 26/32.5 | 220.1 | 3650 | TR544D | ||
HZR225825006 | 145.5 | 167 | 21.5 | 10 | 285.75 | 26 | 220.1 | 3365 | TR544D | ||
HZR225825007 | 146.5 | 167 | 20.5 | 10 | 285.75 | 26 | 220.1 | 3365 | TR544D | ||
HZR225825008 | 144.8 | 168 | 23.2 | 8 | 275 | 24/26/32.5 | 221.1 | 3650 | TR544D | ||
HZR225825009 | 142.5 | 165.5 | 23 | 8 | 285 | 26/32.5 | 221.1 | 3650 | TR544D | ||
HZR225825010 | 143.5 | 167.5 | 24 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544 | ||
HZR225825011 | 143.8 | 167 | 23.2 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544D | ||
HZR225825012 | 144.5 | 167 | 22.5 | 10 | 335 | 26/32.5 | 281.2 | 3650 | TR544D | ||
HZR225825013 | 144 | 166 | 22 | 10 | 335 | 26/32.5 | 281.2 | 3550 | 70MS-07N | ||
HZR225825014 | 144 | 167 | 23 | 10 | 335 | 26/32.5 | 281.2 | 3650 | 70MS-07N | ||
HZR225825015 | 144 | 167.5 | 23.5 | 10 | 335 | 26/32.5 | 281.2 | 3650 | 70MS-07N |
