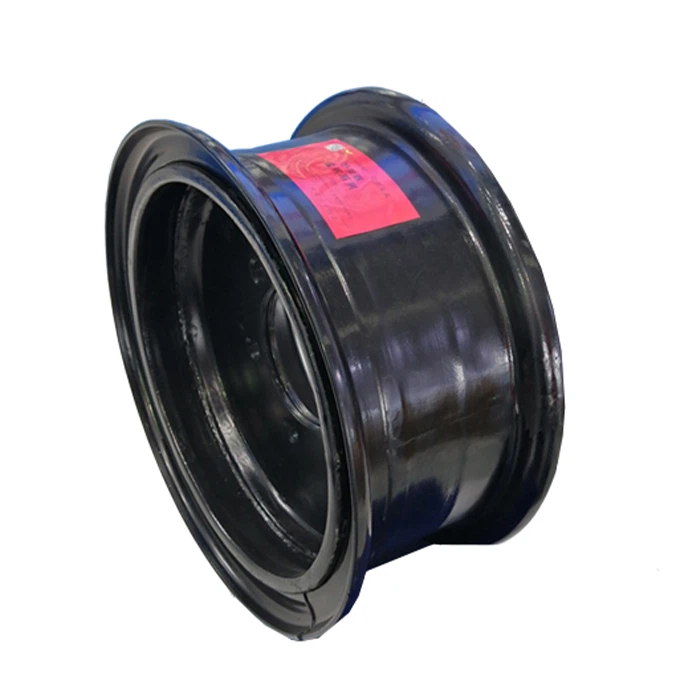

24 Inch Tube Steel Wheel
2. The separate ring cracking is the common failing with tube wheels, through designing thicker and wider flange, greatly reduce the cracking rate.
Send Inquiry
Add To Inquiry
Product Details of24 Inch Tube Steel Wheel
Light duty, heavy duty tube steel wheel-zhongwu series:
Features:
1. Modern digital rolling technology combining the traditional process way, guarantee better overloading capacity, better adaptability.
2. The separate ring cracking is the common failing with tube wheels, through designing thicker and wider flange, greatly reduce the cracking rate.
3. Modify the flange radian, using the flow forming technology to produce disc, using 20mm thickness steel material, increasing loading capacity , reducing the wheel weight.
4. Wider flange, thicker design, applied to overloading and bad road condition.
In Chinese auto market, automotive products will be treated as heavy assets for a long time, which is the fundamental difference between Chinese automobile culture and developed countries, European countries and even our neighbor Japan. When we can easily buy a car just using half year's salary, perhaps there is not much to take into account for choosing aluminum wheel or steel wheel.
|
ADVANCE WHEEL BRAND-TUBE STEEL WHEEL |
|||||||||
|
Wheel Size |
Part No. |
Stud Hole no. |
Stud Hole Dia (mm) |
Stud Hole Type |
P.C.D. (mm) |
Center Hole (mm) |
Offset (mm) |
Disc Thickness (mm) |
Tyre Size |
|
8.5-24 |
HZR850240001 |
10 |
Φ26/Φ27 |
1X45º |
Φ335 |
Φ281 |
180 |
14/16/18 |
12.00R24 |
|
HZR850240002 |
10 |
Φ32.5 |
SR22 |
Φ285.75 |
Φ222 |
180 |
14/16/18 |
||
|
HZR850240003 |
10 |
Φ26 |
1X45º |
Φ285.75 |
Φ220 |
180 |
14/16/18 |
||
|
HZR850240004 |
8 |
Φ32.5 |
SR22 |
Φ285 |
Φ221 |
180 |
14/16/18 |
||
ADVANCE WHEEL BRAND-TUBE STEEL WHEEL | |||||||||
Wheel Size | Part No. | Stud Hole no. | Stud Hole Dia (mm) | Stud Hole Type | P.C.D. (mm) | Center Hole (mm) | Offset (mm) | Disc Thickness (mm) | Tyre Size |
8.5-24 | HZR850240001 | 10 | Φ26/Φ27 | 1X45º | Φ335 | Φ281 | 180 | 14/16/18 | 12.00R24 |
HZR850240002 | 10 | Φ32.5 | SR22 | Φ285.75 | Φ222 | 180 | 14/16/18 | ||
HZR850240003 | 10 | Φ26 | 1X45º | Φ285.75 | Φ220 | 180 | 14/16/18 | ||
HZR850240004 | 8 | Φ32.5 | SR22 | Φ285 | Φ221 | 180 | 14/16/18 | ||
